Hello,
I have two DICOMs (EOS bi-plane x-ray); they are orthogonal and synchronized. The program failed to load them as series, I imported each one separately as a volume. Now, I want to merge them, but only one view of each (the AP view of DICOM1 and RL view of DICOM2).
I was wondering if there is any solution here; thank you in advance.
These seem to be projection X-rays so there will be no series, but a pair of single images.
After a search I found that “using the sterEOS workstation, clinicians can generate patient-specific 3D reconstructions of the spine, pelvis, and lower limbs from the two 2D images.”. As far as I know, Slicer does not have tools to do such reconstruction from a pair of projections, if this is what you are asking.
Thanks @cpinter for your response. The company’s software is mainly for clinical measurements, and the 3D model is merely for visualization (the company no longer provides research features unfortunately).

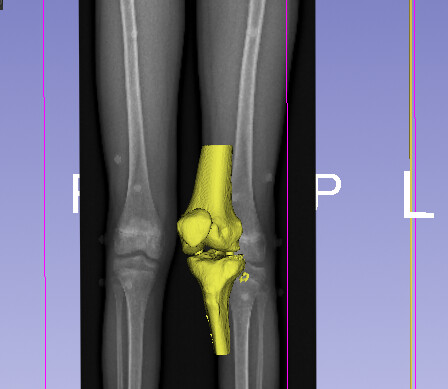

However, I’m trying to align the bones (femur and patella) to be in the same position and orientation as the images. Something like:
