I am trying to figure out how I load the Franka Robot into Slicer because I want to be able to send joint commands to it via OpenIGTLink and see it move in Slicer. It seems like I need to use Slicer_ROS2, but I was wondering if there is any easier way to just upload the URDF files of the robot because I do not need ROS and it seems like I need to use a specific version of ubuntu for Slicer_ROS2.
Slicer_ROS2

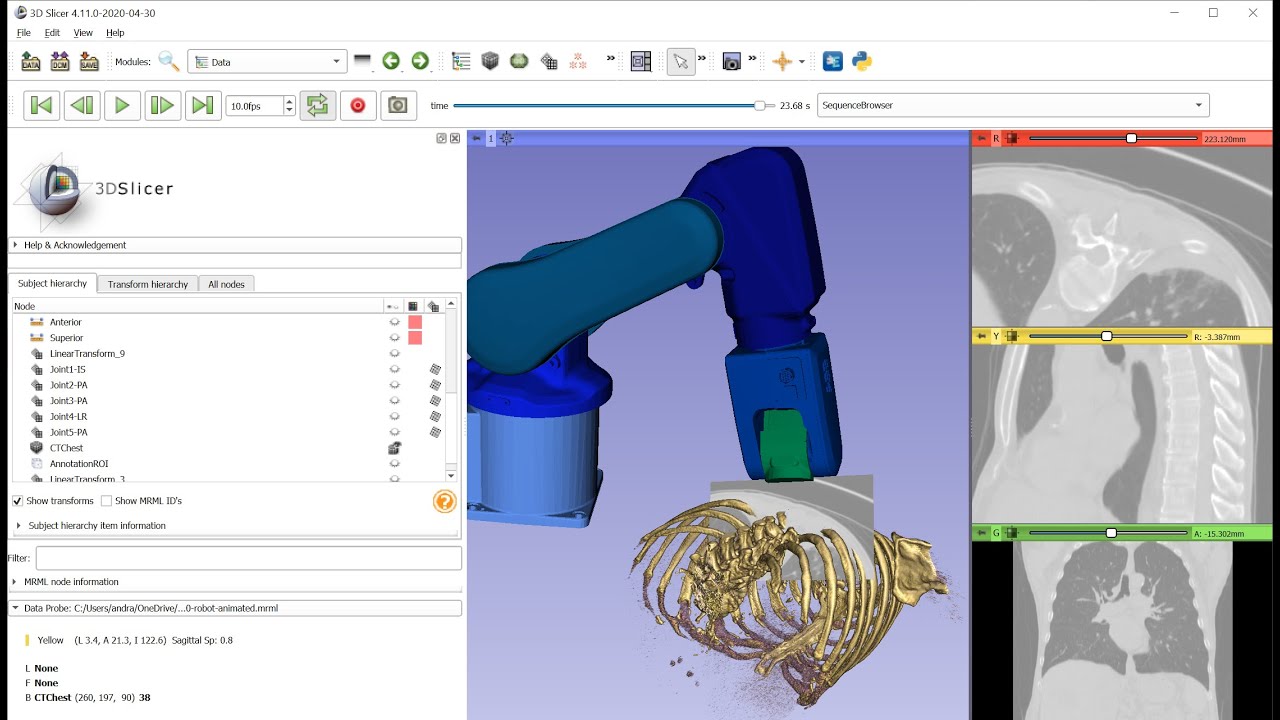

If all you need is to visualize a robot and send joint commands then you can use the ROS OpenIGTLink bridge. You can extract surface meshes needed for rendering the robot from the urdf file and recreate them in Slicer - see an example here:
However, roboticists generally prefer to have full access to ROS from the Slicer module, and that is where the second option is useful: having a ROS node running in Slicer. This allows you to do a lot more, but it is harder to set up the build.
2 Likes
Wow, thanks! That is what I am looking for as you show in the youtube video. Basically I want to just drag and drop a file and instead of using the mouse and sliders to adjust the joint values, I want to do this automatically using OpenIGTLink.
But I am a little confused about converting my urdf file into the mrb file where the joint values can be controlled with the sliders as you do in the video. So I can convert the urdf into surface meshes, but how will slicer know all the joints and how to set the sliders to actuate the joints?
Slicer can do exactly this. The file that you drag-and-drop is a Slicer scene file that contains models, transforms, and OpenIGTLink configuration.
You can build the transform tree from information in the urdf file. To make this very easy, I’ve implemented an automatic importer script. You can download it from here:
The script does not support all possible features (e.g., I’ve only added “revolute” joint types), but can be easily extended as needed.
All you need is to copy-paste the script into Slicer’s Python console in a recent Slicer Preview Release (Slicer-5.7.x; Slicer Stable Release is not compatible, as it does not support selective display of transform rotation handles):
2 Likes
Hi,
Thank you so much for making this converter available for us. I had some trouble with loading my own URDF into the python console of Slicer. The module and Slicer would crash when this portion of the code was pasted into the console:
# Add all links and joints to the scene
nodes = {}
for link in robot:
name = link.get("name")
if link.tag == "link":
try:
stlFilePath = rootPath + "/" + link.find('collision').find('geometry').find('mesh').attrib["filename"]
# Use RAS coordinate system to avoid model conversion from LPS to RAS (we can transform the entire robot as a whole later if needed)
modelNode = slicer.modules.models.logic().AddModel(stlFilePath, slicer.vtkMRMLStorageNode.CoordinateSystemRAS)
except:
# No mesh found, add a sphere
sphere = vtk.vtkSphereSource()
sphere.SetRadius(0.01)
modelNode = slicer.modules.models.logic().AddModel(sphere.GetOutputPort())
modelNode.SetName(name)
nodes[name] = { "type": "link", "model": modelNode}
elif link.tag == "joint":
jointTransformNode = slicer.mrmlScene.AddNewNodeByClass("vtkMRMLTransformNode", name)
nodes[name] = { "type": "joint", "transform": jointTransformNode}
if link.get("type") == "fixed":
# do not create a display node, the transform does not have to be editable
pass
else:
# make the transform interactively editable in 3D views
jointTransformNode.CreateDefaultDisplayNodes()
displayNode = jointTransformNode.GetDisplayNode()
displayNode.SetEditorVisibility(True)
displayNode.SetEditorSliceIntersectionVisibility(False)
displayNode.SetEditorTranslationEnabled(False)
if link.get("type") == "revolute":
# <axis xyz="0 0 1"/>
rotationAxis = [float(x) for x in link.find("axis").get("xyz").split()]
if rotationAxis == [1, 0, 0]:
displayNode.SetRotationHandleComponentVisibility3D(True, False, False, False)
elif rotationAxis == [0, 1, 0]:
displayNode.SetRotationHandleComponentVisibility3D(False, True, False, False)
elif rotationAxis == [0, 0, 1]:
displayNode.SetRotationHandleComponentVisibility3D(False, False, True, False)
else:
raise ValueError(f"Unsupported rotation axis {rotationAxis}")
else:
# TODO: implement translation and other joint types
raise ValueError(f"Unsupported joint type {link.get('type')}")
I was wondering if I could get some help on this. Thank you
@Kyle_Hata25 - It would be great if you could post an example robot file that isn’t working, along with a report of which specific error you are seeing.
Hi! So I am not receiving an error message on the Slicer python console but rather Slicer is crashing and would shut down when pasting the code into the console.
To get help, be sure to post the data and the exact replication steps. Maybe you need to put the robot file in google drive or similar and paste the link here.
Hi,
Thank you so much for the help. Here is the link to the drive with the information of the problem.
Link
Once again, thank you so much!
Great, thanks for sharing the udf file - I can see now why it crashes.
If you look in your .urdf file you can see that the mesh lines are formatted like this:
<mesh filename="package://quadruped_description/quadruped/body1.stl"/>
Whereas in the example that Andras used this look like this:
<mesh filename="meshes/collision/link1.stl"/>
That is, in the code that working the mesh files are in a location relative to the location of the .urdf file, while yours use a special syntax package://
So you’ll need to investigate where to get those stl files and construct a layout like the one the code expects. From a quick search I think this should help:
It may be easier to update the code to strip package:// and search for the STL files in the current folder and make sure that the STL files are in the correct subfolder relative to the .urdf file.
