Import pixelation

Support
1

Hi there,

When I import DICOM data I have been finding that sometimes it pixelates some of the views. Does anyone know why and how to prevent this from happening?

slicerforum
slicerforum1374×1046 142 KB

Thanks

2

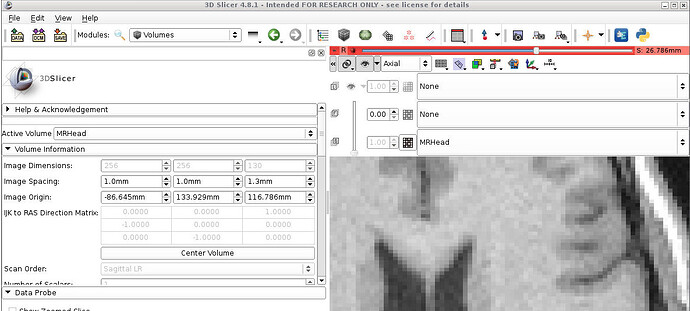

That looks normal to me - probably the data is sampled less finely in the front to back axis - you can look at the pixel sizes in the Volumes module and you can see the original pixels by turning off interpolation in the slice controller (checkerboard button next to the volume name).

image1185×535 182 KB

3

If you acquire more image slices (with less space between them) then you can have high resolution along all axes. However, acquiring more image slices would expose the patient to higher X-ray dose. Therefore, when imaging live patients, spacing between slices is often chosen to be 2-10x larger than pixel spacing within an image slice.
